Monitor Full Motion Wall Mount
Part Number: CP846

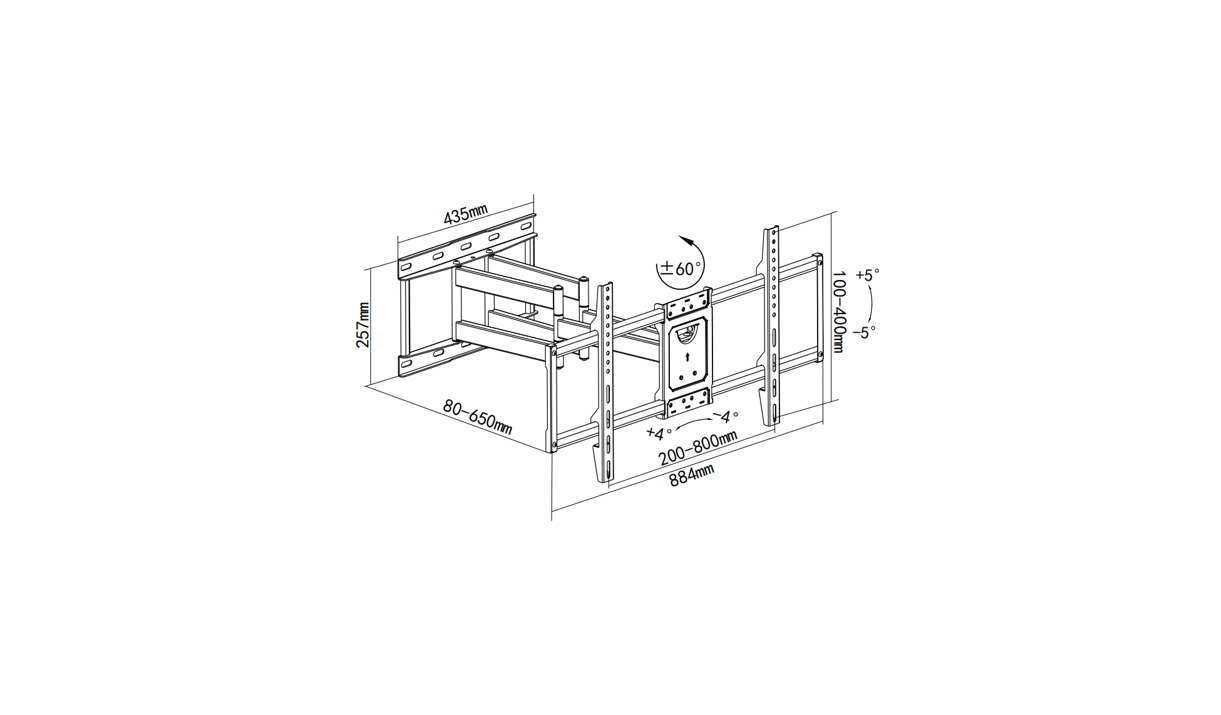

Disigned for 52"-98" monitors, 176 lbs capacity, 80-650 mm extension, ±5° tilt, ±4° horizontal
| Specification | |
|---|---|
| Applicable Size | 52'' - 98'' |
| Load Capacity | 80 kg(176 lbs) |
| Profile/Gap to wall | 80 - 650 mm(3.15" - 25.59") |
| Tilt Adjustment | ±5° |
| Horizontal Adjustment | ±4° |
| Horizontal Rotation Angle | - |
| VESA Compatible | 800 × 400 mm(31.50" × 15.75") 200 × 100 mm(7.87" × 3.94") |
| Inner Box Dimensions | 705 × 270 × 75 mm(27.76" × 10.63" × 2.95") |
| Inner Box Gross Weight | 9.25 kg (20.4 lbs) |
| Outer Carton Dimensions | 705 × 270 × 85 mm(27.76" × 10.63" × 3.35") |
| Outer Carton Gross Weight | 9.25 kg (20.4 lbs) |
| QTY/CTN | 1 pc |
